Ajax Troy- 3D Gold and Metal Detection
Ajax Troy redefines efficiency in metal detection by integrating advanced technology that goes beyond conventional depth measurement. This state-of-the-art device is inspired by future innovations to deliver unparalleled performance.
Detailed Target Analysis
TROY provides precise measurements of the target's shape, size, type, and depth. It ensures accurate detection and analysis, making it an essential tool for those seeking detailed and reliable information about underground targets.
Advanced Technology for Accurate Results
Designed with cutting-edge technology, Ajax Troy is engineered to meet the highest standards of detection efficiency. Its ability to offer comprehensive target details sets it apart in the field of gold and metal detectors.
4o mini
Detection System Multiple functions device containing 2 advanced and professional detection system Operating Principle Processing data and digital signals and converting them to visual and audible results Processor Architecture MIPS 32 Operation processor M4K™ Core Display Screen TFT Color LCD, 800 x 480 WVGA, 16-bit color depth Battery 7.4 volts, 3300 mAh Power Rating 400 mA Battery Endurance Typical usage time 10 hours Power Adapter 240-100 VAC / 15 VDC – EU Plug Storage 1 GB / it can save to 1000 scans. Sound High quality sounds, 32 KBIT/S, MP3 Notifications Sound and tactile feedback configurable in the settings menu for Bluetooth 2.4 GHz, sensitivity up to -80dBm. Languages Multilingual User Interface with support for 8 languages. Date and Time Real Time Clock could be set manually or automatically via GPS time. Login Restriction Configurable PIN. Overall Dimensions 62x33x18 cm Package Total Weight 3.7 kg Operating temperature From -10° C to 60° C (14° F – 140° F) Storage temperature From -10° C to 80° C (14° F – 176° F) Humidity Could be stored and operated at relative humidity level up to 90%. The AJAX TROY is an advanced 3D gold scanner and ground imaging detector designed for gold prospecting, treasure hunting, metal detection and underground exploration. It combines two complementary detection systems—Gradio Smart and 3D Ground Imaging—to help users locate potential targets, investigate underground anomalies and analyze scanned areas.
TROY is designed for the investigation of buried metals, underground voids, cavities, archaeological targets, underground structures, pipes and utilities, with scanning information displayed directly through the device interface.
Gradio Smart System
The Gradio Smart System is designed to identify variations and anomalies in the magnetic field within the search area. It can be used for initial investigation to help locate areas that may contain buried metallic objects, underground voids or other relevant anomalies.
Its handheld configuration allows the operator to move systematically across the search area while monitoring the device response. Potential areas can then be investigated in greater detail using the 3D Ground Imaging System.
3D Ground Imaging System
The 3D Ground Imaging System provides a more detailed method for underground investigation. Using four primary scanning sensors, the system collects ground measurements and processes them to generate a three-dimensional representation of detected subsurface anomalies.
The 3D visualization helps the operator evaluate information such as target location, approximate dimensions, shape and characteristics of the detected anomaly, providing a clearer understanding of the scanned area.
The system can be used to investigate potential metallic targets, underground voids, cavities, buried structures and other subsurface anomalies.
5-Inch Color Display & Direct Analysis
AJAX TROY features a 5-inch TFT color display with 16-bit color, providing direct access to detection systems, settings and scanning information.
The device also provides intelligent audio feedback during compatible detection operations, complementing the visual information displayed on the screen.
Designed for Field Exploration
TROY combines advanced detection technologies with a practical, portable design. Its handheld configuration supports efficient movement across different terrain and provides a flexible platform for both initial target investigation and detailed ground scanning.
Rechargeable Battery
The device is equipped with a 7.4V, 3300 mAh rechargeable battery. According to manufacturer specifications, typical operating time is up to 10 hours, depending on device settings and operating conditions.
8 Supported Languages
AJAX TROY supports eight international languages:
English • German • French • Spanish • Arabic • Turkish • Russian • Italian
2-Year AJAX Manufacturer Warranty
TROY is supplied with a 2-year AJAX manufacturer warranty, subject to the applicable manufacturer's warranty terms and conditions.
AJAX TROY – Two Systems in One Device
By combining Gradio Smart and 3D Ground Imaging, AJAX TROY provides an integrated workflow from initial investigation and potential target localization to detailed 3D ground scanning and analysis.
With its dual detection technology, four scanning sensors, color display and portable design, TROY provides a versatile solution for users looking for a professional gold detector, metal detector, 3D ground scanner and underground imaging system in one device.
Ares designed and fabricated wit a strong material and light, like the carbon fiber and some other materials used to keep it safe and easy to carry. Packaging is made with a high quality anti dust and humidity.
- Ajax Mini Bag
- Tablet
- Gradio Smart Sensor

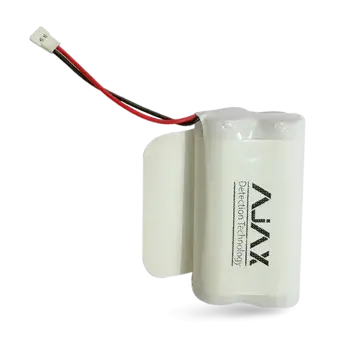

- Ajax Battery
- Power Adapter
- Headphone
